Specs at a glance
-
Measuring range
0.01 to 20 mg/l / 0.1 to 50 mg/l NO3-N
0.04 to 80 mg/l / 0.4 to 200 mg/l NO3
0 to 50 1/m / 0 to 250 1/m / 0 to 1000 1/m SAC
0 to 75 mg/l / 0 to 375 mg/l / 0 to 1500 mg/l COD/BOD (254nm)
0 to 30 mg/l / 0 to 150 mg/l / 0 to 600 mg/l TOC/DOC (254nm) -
Process temperature
5 to 50°C (41 to 120 °F)
Field of application

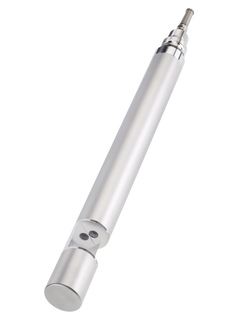

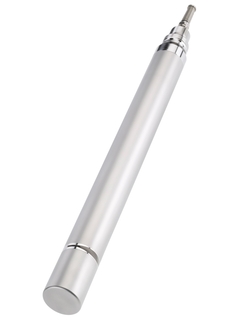

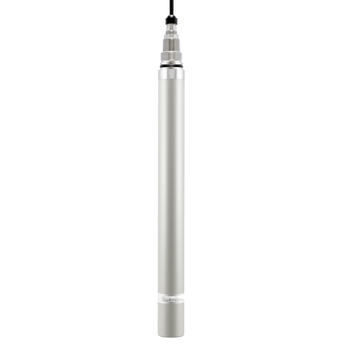

Viomax CAS51D is a smart sensor that allows unattended operation in a wide range of process conditions in water, wastewater and utilities. It ensures continuous online measurements without any chemicals and it is extremely robust as well as low-maintenance thanks to its self-cleaning design. You can select the CAS51D as nitrate sensor or as sensor for SAC and several sumparameters. Thanks to Memosens digital technology, Viomax CAS51D offers high process and data integrity and is easy-to-use.
Viomax CAS51D measures nitrate, SAC or several sum parameters in drinking water, process water and wastewater applications as well as in the utilities sector:
Organic load or nitrate in inlet and outlet
Determination of CODeq, TOCeq, BODeq or DOCeq
Monitoring, control and optimization of treatment processes
Nitrate monitoring in the aeration basin and denitrification stage
Benefits
Cost-effective: Easy, chemical-free handling is safe, environmentally friendly and saves on operational expenditure.
Extremely fast response time: Measured value processing in the sensor provides reliable real-time process information.
Fast and easy commissioning: Sensor comes precalibrated and preconfigured ex factory.
Enables unattended plant operation: Intelligent design and automatic air-cleaning functionality maximize availability and minimize maintenance.

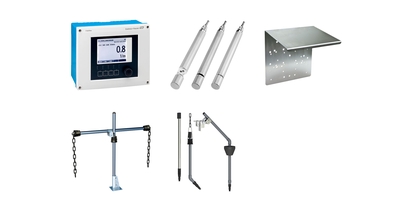

Perfect adaption to open basins: Fast and flexible sensor positioning with Flexdip CYH112 holder and CYA112 assembly system.
Perfect adaption to pipes: Various flow cells allow easy plant integration.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
Predecessor
-
-
Technical Information (TI)
TI Viomax CAS51D
Photometric sensor for measuring the spectral absorption coefficient or
nitrate contentEN 18/09/202404/12/202031/07/201930/06/201717/12/2010Language:
English
Version:
18/09/2024
File size:
857 KB
File name:
TI00459CEN_1724-00.pdf
-
-
-
Operating Instruction (BA)
BA Viomax CAS51D
Photometric sensor for SAC or nitrate measurement
EN 18/09/202404/12/202031/01/201931/01/201731/12/2010Language:
English
Version:
18/09/2024
File size:
1.7 MB
File name:
BA00459CEN_1724-00.pdf
-
-
-
Operating Instruction (BA)
Operating Instructions - Compressed air cleaning unit - 115VAC
Operating Instructions - Compressed air cleaning unit - 115VAC
Language:
English
Version:
29/01/2013
File size:
1.8 MB
File name:
BA00498CEN_0113.pdf
-
-
-
Installation Instructions (EA)
EA CAV01 kit, seal set
for the CAV01 flow assembly
EN 14/08/2023Language:
English
Version:
14/08/2023
File size:
977.1 KB
File name:
EA01477CEN_0123-00.pdf
-
-
-
Fields of Activities (FA)
Analyseurs, capteurs in situ et préleveurs
Experts en analyses physico-chimiques
Language:
French
Version:
20/12/2023
File size:
9.7 MB
File name:
Analyseurs-Preleveurs-FA00012CFR.pdf
-
-
-
Fields of Activities (FA)
Analizzatori, sensori in loco e campionatori
Esperti nell'analisi dei liquidi
Language:
Italian
Version:
21/03/2017
File size:
26.5 MB
File name:
FA00012CIT_18.17.pdf
-
-
-
Fields of Activities (FA)
Sıvı analizinde uzmanlık
Sensörlerden komple anahtar teslim çözümlere
Language:
Turkish
Version:
23/11/2023
File size:
7.2 MB
File name:
FA01088C56TR01.23.pdf
-
-
-
Fields of Activities (FA)
Sensoren, Messumformer, Kompaktgeräte and Armaturen
Kompetenz in der Flüssigkeitsanalyse
Language:
German
Version:
24/09/2024
File size:
4.1 MB
File name:
FA00007CDE_Analyse_21.24_LowRes.pdf
-
-
-
Fields of Activities (FA)
Sensors, transmitters, compact devices and assemblies
Experts in Liquid Analysis
Language:
English
Version:
24/09/2024
File size:
4.2 MB
File name:
FA00007CEN_Analyse_21.24_LowRes.pdf
-
-
-
Fields of Activities (FA)
Kompetenz in der Flüssigkeitsanalyse
Vom Sensor bis zur schlüsselfertigen Komplettlösung
Language:
German
Version:
21/09/2022
File size:
1.3 MB
File name:
FA01018CDE_0422_Analyse_Portfolio_lowres.pdf
-
