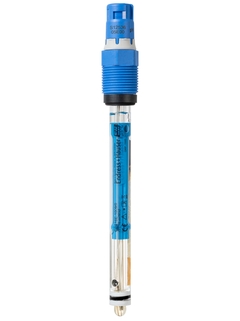

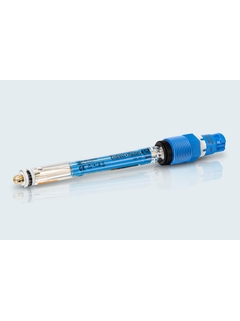

Memosens CPS16E - Digital combined pH/ORP sensor for standard applications

Digital combined pH/ORP sensor Memosens CPS16E

Memosens 2.0 glass electrode for standard applications in process and water & wastewater industries

CPS16E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Memosens CPS16E - Digital combined pH/ORP sensor for standard applications
  • F
  • L
  • E
  • X
©Endress+Hauser
Memosens CPS16E - Digital combined pH/ORP sensor for better process overview
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    ORP: –1 500 … 1 500 mV
    Application: A
    • pH: 1 to 12
    Application B
    • pH: 0 to 14

  • Process temperature

    Application A: –15 to 80 °C (5 to 176 °F)
    Application B: 0 to 135 °C (32 to 275 °F)

  • Process pressure

    0.8 to 17 bar (11.6 to 246,5 psi) absolute

Field of application

Memosens CPS16E is suitable for simultaneous pH and ORP measurement in applications with long-term stable conditions. Thanks to its pH and ORP elements, the sensor offers a better process overview and enables tighter process control. Memosens CPS16E features Memosens 2.0 digital technology, offering extended data storage for predictive maintenance. The pH/ORP sensor resists moisture and enables lab calibration which makes the operator's daily tasks easier and maximizes process integrity.

  • Long-term monitoring or limit control in processes with stable process conditions:
    - Chemical processes
    - Pulp and paper industry
    - Power stations (e.g. flue gas cleaning)
    - Incinerator plants
    - Mining
    - Wastewater

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Benefits

  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

  • The additional platinum electrode enables constant monitoring of reference impedance and is a reliable indicator of the sensor quality.

  • Simultaneous measurement of pH, ORP and rH values (in rH mode) offers a better process overview and allows for a tighter process control.

  • Robust: Large PTFE ring junction and reference with ion trap prevent poisoning of the sensor.

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi).

  • Reduced operating costs: Lab calibration and fast sensor exchange on site minimize process downtime. Sensor regeneration in the laboratory extends the sensor lifetime.

  • Non-contact, digital signal transmission ensures reliable measurements resulting in maximum process safety.

Videos

  • The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
