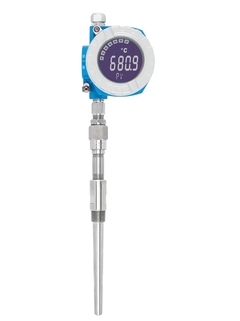

Name: Thermocouple TMT162C
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

TMT162C TC Thermometer, field transmitter,display

Predecessor

TMD833C

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

US style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
with neck
to use with thermowell
backlit display
Thermowell / protection tube

to use with thermowell
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

6,0 mm (0,24'')
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

Not defined
Optional coating

Not defined
Process connection

male thread:
G1/2"
NPT1/2"
NPT3/4"
M24x1.5
Tip shape

straight
Operating temperature range

Type K:
-40 °C ...800 °C
(-40 °F ...1.472 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Max. process pressure (static)

up to 20 °C: 480 bar (6.962 psi)
Accuracy

class 1 acc. to IEC 60584
class 2 acc. to IEC 60584
Response time

depending on configuration
t50 = 3 s
t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II
ATEX Eex
explosion proof
Certification

Gost Metrology

Filter

Search downloads by serial number

Configure to download the CAD drawings of this product

Configure

67 documents

Technical Information (TI)

TMT162C

Technical Information (TI)

English version - 04/2009

New version available in English

Thermocouple assembly with HART®-, FOUNDATION Fieldbus™- or PROFIBUS® PA
field transmitter

Select other languages, versions and see details Hide selection and details

	EN
01/04/2009
01/08/2002

Language:	English
Version:	01/04/2009
File size:	1 MB
File name:	TI267ten_0409.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

BA iTEMP TMT162

Operating Instruction (BA)

English version - 01/2024

New version available in English

Temperature field transmitter
HART® communication

Select other languages, versions and see details Hide selection and details

	EN
26/01/2024
23/11/2023
30/04/2021
16/10/2017

Language:	English
Version:	26/01/2024
File size:	4.4 MB
File name:	BA01801TEN_0424-00.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

BA iTEMP TMT162

Operating Instruction (BA)

English version - 09/2023

New version available in English

Dual-input temperature field transmitter with FOUNDATION Fieldbus™
protocol

Select other languages, versions and see details Hide selection and details

	EN
30/09/2023
26/01/2015
11/10/2012
01/12/2010
28/11/2006

Language:	English
Version:	30/09/2023
File size:	4.4 MB
File name:	BA00224REN_1623-00.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

BA iTEMP TMT162

Operating Instruction (BA)

English version - 09/2023

New version available in English

Dual-input temperature transmitter with PROFIBUS<sup>®</sup>
PA protocol

Select other languages, versions and see details Hide selection and details

	EN
30/09/2023
20/09/2012
15/06/2011
01/12/2009
01/02/2009

Language:	English
Version:	30/09/2023
File size:	4 MB
File name:	BA00275REN_0323-00.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

KA iTEMP TMT162

Short Instruction (KA)

English version - 04/2024

New version available in English

Temperature field transmitter
HART® communication

Select other languages, versions and see details Hide selection and details

	EN
15/04/2024
20/09/2023
21/08/2017
01/01/2010
15/03/2007

Language:	English
Version:	15/04/2024
File size:	2.9 MB
File name:	KA00250REN_0424-00.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

KA iTEMP TMT162

Short Instruction (KA)

English version - 09/2023

New version available in English

Dual-input temperature field transmitter with FOUNDATION Fieldbus™
protocol

Select other languages, versions and see details Hide selection and details

	EN
20/09/2023
11/06/2015
01/11/2010
20/10/2006
30/01/2006

Language:	English
Version:	20/09/2023
File size:	2.3 MB
File name:	KA00189REN_1523-00.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

KA iTEMP TMT162

Short Instruction (KA)

English version - 09/2023

New version available in English

Temperature field transmitter
PROFIBUS® PA protocol

Select other languages, versions and see details Hide selection and details

	EN
20/09/2023
17/04/2018
01/12/2009
01/03/2009

Language:	English
Version:	20/09/2023
File size:	2.4 MB
File name:	KA00276REN_1423-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Omnigrad S RTD and TC Thermometer with display TMT162R/C, TMT142R/C ATEX II 3G Safety Instructions

Ex Safety Instruction (XA)

English version - 06/2018

New version available in English

Temperature field transmitter, ATEX Safety instructions

Select other languages, versions and see details Hide selection and details

	EN
05/06/2018
01/08/2010

Language:	English
Version:	05/06/2018
File size:	804.5 KB
File name:	XA00101TA3_1418.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Safety instructions ATEX II1G or II 1/2G

Ex Safety Instruction (XA)

English version - 09/2005

New version available in English

Compact RTD and TC Thermometer
TMT162R, TMT162C

Show details Hide details

Language:	English
Version:	16/09/2005
File size:	961.9 KB
File name:	XA009Ten.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

TMT162R, TMT162C ATEX: Ex d IIC T6…T1 Ga/Gb Ex tb IIIC T85 °C...T450 °C Da/Db Safety Instructions

Ex Safety Instruction (XA)

English version - 05/2015

New version available in English

Temperature field transmitter, ATEX Safety instructions

Select other languages, versions and see details Hide selection and details

	EN
21/05/2015
01/05/2009
16/09/2005

Language:	English
Version:	21/05/2015
File size:	1.1 MB
File name:	XA00006TA3_1314.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

O-Ring 88x3 HNBR 70° Shore PTFE

Sealing

Drawing number

Order code

6

71502617
Cover latch spares kit field housing

Housing/housing accessories

Drawing number

Order code

7

51004948
Housing cover blind, 316L Exd ATEX Ex d, FM XP + O-ring CSA XP only as cover of terminal part

Cover

Drawing number

Order code

5

TMT162X-HA
Housing cover blind, 316L + O-ring

Cover

Drawing number

Order code

5

TMT162X-HB
Housing cover cpl. for display,Ex d,316L ATEX Ex d, FM XP, CSA XP + O-ring

Cover

Drawing number

Order code

5

TMT162X-HC
Housing cover cpl. for display, 316L + O-Ring

Cover

Drawing number

Order code

5

TMT162X-HD
Housing cover blind, Alu Ex d FM XP + O-ring CSA XP only as cover of terminal part

Cover

Drawing number

Order code

5

TMT162X-HH
Housing cover blind, Alu + O-ring

Cover

Drawing number

Order code

5

TMT162X-HI
Housing cover cpl. for display,Alu Ex d + O-ring

Cover

Drawing number

Order code

5

TMT162X-HK
Housing cover cpl. for display, Alu + O-ring

Cover

Drawing number

Order code

5

TMT162X-HL
Display fitt. kit field housing

Display

Drawing number

Order code

2

71310423
Display HART5 + fitting kit + twist protection

Display

Drawing number

Order code

2

TMT162X-DA
Display PA/FF + fitting kit + twist protection

Display

Drawing number

Order code

2

TMT162X-DB
Display fitting kit + twist protection

Display

Drawing number

Order code

2

TMT162X-DC
Fieldbus connector PA M20;M12; L150

further parts

Order code

71090687
Insert TEC300

further parts

Order code

TEC300-
Electronic TMT162

Electronic

Drawing number

Order code

4

TMT162E-
Housing TMT162

Housing/housing accessories

Drawing number

Order code

1

TMT162G-
Commubox FXA195

further parts

Order code

FXA195-
Mount.bracket st.steel A4 wall/tube 2"

Order code

51004823
M20x1.5 cable gland, 2xD0.5 cables

Drawing number

Order code

8

51004653
Cable gland NPT1/2, 2xd5 cables

Drawing number

Order code

8

51004654
Adapter M20x1.5 exter./M24x1.5 intern.VA

Order code

51004915
Cable entry M20x1.5

Drawing number

Order code

8

51004949
Mounting bracket 2"tube stainless steel

Order code

51006412
Cable gland NPT1/2, D4.5-8.5 IP68

Drawing number

Order code

8

51006845
O-Ring 18.77x1.78 HNBR 70° Shore PTFE

Drawing number

Order code

8

71502941
Blind plug M20x1.5 EEx-d+O-ring Alu

Drawing number

Order code

8

71525620
Blind plug M20x1.5 Ex-d+O-ring V4A

Drawing number

Order code

8

71525622
Blind plug G1/2" Ex-d+O-ring Alu

Drawing number

Order code

8

71525621
Blind plug G1/2" Ex-d+O-ring V4A

Drawing number

Order code

8

71525623
Blanks (blind) NPT1/2, 3.1655.53

Drawing number

Order code

8

51004490
Blanks (blind) 1/2NPT V4A

Drawing number

Order code

8

51006888

Thermocouple TMT162C

Predecessor

Successor

iTHERM ModuLine TM131

Characteristic / Application

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Optional coating

Process connection

Tip shape

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Certification

Back

TMT162C

BA iTEMP TMT162

BA iTEMP TMT162

BA iTEMP TMT162

KA iTEMP TMT162

KA iTEMP TMT162

KA iTEMP TMT162

Omnigrad S RTD and TC Thermometer with display TMT162R/C, TMT142R/C ATEX II 3G Safety Instructions

Safety instructions ATEX II1G or II 1/2G

TMT162R, TMT162C ATEX: Ex d IIC T6…T1 Ga/Gb Ex tb IIIC T85 °C...T450 °C Da/Db Safety Instructions

Back

O-Ring 88x3 HNBR 70° Shore PTFE

Cover latch spares kit field housing

Housing cover blind, 316L Exd ATEX Ex d, FM XP + O-ring CSA XP only as cover of terminal part

Housing cover blind, 316L + O-ring

Housing cover cpl. for display,Ex d,316L ATEX Ex d, FM XP, CSA XP + O-ring

Housing cover cpl. for display, 316L + O-Ring

Housing cover blind, Alu Ex d FM XP + O-ring CSA XP only as cover of terminal part

Housing cover blind, Alu + O-ring

Housing cover cpl. for display,Alu Ex d + O-ring

Housing cover cpl. for display, Alu + O-ring

Display fitt. kit field housing

Display HART5 + fitting kit + twist protection

Display PA/FF + fitting kit + twist protection

Display fitting kit + twist protection

Fieldbus connector PA M20;M12; L150

Insert TEC300

Electronic TMT162

Housing TMT162

Commubox FXA195

Mount.bracket st.steel A4 wall/tube 2"

M20x1.5 cable gland, 2xD0.5 cables

Cable gland NPT1/2, 2xd5 cables

Adapter M20x1.5 exter./M24x1.5 intern.VA

Cable entry M20x1.5

Mounting bracket 2"tube stainless steel

Cable gland NPT1/2, D4.5-8.5 IP68

O-Ring 18.77x1.78 HNBR 70° Shore PTFE

Blind plug M20x1.5 EEx-d+O-ring Alu

Blind plug M20x1.5 Ex-d+O-ring V4A

Blind plug G1/2" Ex-d+O-ring Alu

Blind plug G1/2" Ex-d+O-ring V4A

Blanks (blind) NPT1/2, 3.1655.53

Blanks (blind) 1/2NPT V4A

We value your privacy
