Cerabar PMP71 - Absolute and gauge pressure

Absolute and
gauge pressure
Cerabar PMP71

Digital pressure transmitter with welded metal sensor for measurement in gases, steam or liquids

PMP71

Compare

Specs at a glance

Accuracy

Standard: 0.05%
Platinum: up to 0.025%
Process temperature

-40°C...125°C
(-40°F...257°F)
Pressure measuring range

400 mbar...700 bar
(5.8 psi...10.500 psi)
Main wetted parts

Alloy C276
316L
Rhodium
Material process membrane

316L, AlloyC,
Rhodium> Gold
Measuring cell

400 mbar...700 bar
(5.8 psi...10.500 psi)
relative/ absolute

See all specifications

Field of application

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.

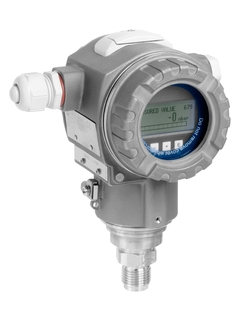

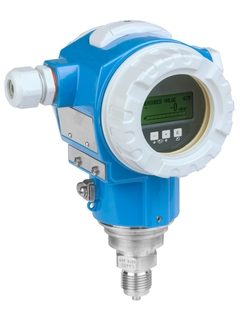

Two chamber aluminum or stainless steel (316L) housing.

Process connections: Threads and flange connections
Process temperature: -40 to +125°C (-40 to +257°F)
Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

Best accuracy, reproducibility and long-term stability
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Overload-resistant and function-monitored from the measuring cell to the electronics
Available with mounted manifolds: always fit, always tested for leaks
Seamless and independent system integration (HART/PA/FF)
