Name: Promag 50D
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

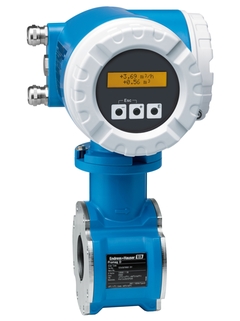

Electromagnetic flowmeter - Proline Promag 50D

Successor

F

L

E

X
Proline Promag D 400 / 5D4C

Wafer flowmeter for the water and wastewater industry. For basic water applications; optimized for limited space and plastic pipe installations.
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Electromagnetic
Product headline

The compact wafer version combined with a modular electronic concept. For basic water applications; optimized for limited space and plastic pipe installations.
Sensor features

Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Short installation length and low weight. Integrated ground disks made of stainless steel.
Transmitter features

Fast commissioning – application‐specific Quick Setups. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.
Nominal diameter range

DN 25…100
1"…4"
Max. measurement error

±0.5%
Measuring range

0...600 m3/h
Max. process pressure

PN16
Cl 150
JIS 10K
Medium temperature range

0...+60°C
(+32...+140°F)
Degree of protection

IP 67 (NEMA 4x)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
Profibus DP/PA
Hazardous area approvals

FM
CSA
Product safety

CE, C-tick, EAC marking

We value your privacy

We use cookies to enhance your browsing experience, collect statistics to optimize site functionality, and deliver tailored advertisements or content.

By selecting "Accept all", you consent to our use of cookies.
For further details please review our cookie policy .

	EN
15/07/2011
01/11/2009
31/03/2009

Language:	English
Version:	15/07/2011
File size:	765.7 KB
File name:	TI00082DEN_1311.pdf

	EN
27/11/2017
01/02/2015
01/04/2014
09/05/2011
01/12/2010

Language:	English
Version:	27/11/2017
File size:	9.6 MB
File name:	BA00055DEN_1717.pdf

	EN
01/11/2009
01/03/2005
15/10/2003
01/06/2001

	EN
14/08/2015
01/12/2009
01/03/2009

	EN
01/05/2017
18/11/2011

	EN
15/11/2018
05/08/2014

	EN
15/11/2018
18/11/2011

Promag 50D

Successor

Proline Promag D 400 / 5D4C

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Back

Proline Promag 50D Technical Information

Proline Promag 50 PROFIBUS DP/PA Operating Instructions

Proline Promag 50

Proline Promag 50 HART Operating Instructions

Proline Promag 50D Brief Operating Instructions

I/O-board, subprint, screening sheed Installation Instructions

Replacing amplifier board Installation Instructions

Replacing Power supply and display Installation Instructions

Replacing amplifier board for harsh environment (HE) Installation Instructions

Replacing power supply for harsh environment (HE) Installation Instructions

Back

Kit P.s.b. 50/51/53 85-260VAC

Kit p.s.b. 50/53 85-260VAC HE

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit p.s.b.50/53 20-55VAC 16-62VDC HE

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas. amplifier PMAG 50 WEA

Kit meas. amplifier 50 WEA HE

Kit meas. amplifier PMAG 50 SEA

Kit meas. amplifier 50 SEA HE

Kit meas. amplifier PMAG 50 EES

Kit meas. amplifier 50 EES HE

Kit com50/51/40/80/90 I+F/stat.in+outEx

Kit I/O 50/80 I+F status in+out HE EX

Kit commodul current/frequency out Ex

Kit I/O 50/80 current/frequ. out HE EX

Kit I/O Profibus PA Ex

Kit I/O 50/53/55/80/83 Profib. PA HE Ex

Kit com Pline 50/90 current out Ex

Kit I/O 50 current out HE EX

Kit I/O 50/53/55/83/65/8ME Profib. DP Ex

Kit I/O 50/53/55/83 Profibus DP HE EX

Kit display mod 50/51/80/65 >=V1.06.00

Kit disp.50/51/80/90/65 Wall >=V1.06.00

Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Kit Bus/connec.b.5X/40/8X/65 field hous.

Kit connec. board PMAG5X wall enclo.

Kit connec. board 50/53/55 wall encl.HE

Kit connec. board In/Output Wall encl

Kit connection board D/E/L/P/S/W FS

Kit connection board D/E/L/P/S/W FS HE

Kit Termin.Block field hous. 5X/8X/40/65

Kit Termin.Block Wall encl. 5X/8X/9X/65

Kit S-Dat Promag 50 programmed

Kit Cover 5X/40/8X/65 with window

Kit Cover 5X/40/8X/65 version blind

Kit Cover Connection terminal

Kit Cover Connection terminal

Repair kit cover, remote version

Kit 10 cable glands M20x1,5

Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

Kit Cable gland Profibus PA

Kit Circuit board cpl field/SS-housing

Kit Bushing to field/SS-housing

Kit Ground terminal / Cover clamp

Kit Seal cover to Wall enclosure

Kit 10 Seal cover to field housing

Kit parts housing compact Stnd/HT
